Shenzhen Zhongpu Electronic Co., Ltd
 |
| 22AWG: | |
|---|---|
| Quantity: | |
2464 18AWG 2C
zhongpu

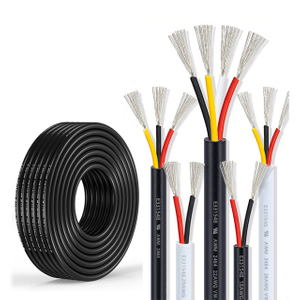

UL 2464 PVC Insulated Flexible Control Cable
| Color | White/Black |
| Brand | zhongpu |
| Material | Copper |
| Number of Cable Strands | 17 |
| Voltage | 300 Volts |
● Rated temperature: 80 ℃
● Rated voltage: 300V
● Reference standard: UL758, UL1581,CSA C22.2No.210.2
● Conductors using single or twisted 32-16AWG tinned or bare copper
● SR-PVC insulation, in compliance with ROHS environmental standards
● Tin plated or bare copper braided shielding
● PVC sheath, compliant with ROHS environmental standards
● Passed UL VW-1, CSA FT1, and JQA-F Mark flame retardant testing
● Use standard insulation thickness, easy to cut wire, and easy to peel
● Used for connecting wires inside computers or machines
【High Conductivity】UL2464 18 gauge 2 conductor wire each cable contains 41 strands of 0.16 mm tinned copper wire. High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance, Ultra-Low eccentricity, better corrosion resistance, oxidation resistance and soft can be bent arbitrarily.
【Product Specification】Black PVC Jacket, 18/2 wire OD: 5±0.2mm. Maximum input voltage: 300V(also can for DC 5V/12V/24V. Maximum current: 7.5A. Rated working temperature: -40℉ to 176℉. Material: PVC+Tinned Copper. Flame retardant:VW-1 & FT1. UL Listed.
【Easy to Use】Our 18 awg 2 wire cable easy to strip,cut,solder and can be used as extension cable or low voltage wire to be widely used in led lights, LED splitter connections, electrical and electronic equipment, landscape lighting, transformers, bulbs, lamps, marine wiring, speakers, automobiles, sprinkler, thermostat cable and other. It can be buried directly or exposed to the sun for a long time.
【Accessories】In order to improve the customer experience, 18 gauge wire is also equipped with 20 pcs of heat-shrinkable tubes and 10 pcs of cable ties to meet the additional needs of customers during use.
【Quality assurance】We are committed to providing high quality products, making our customers satisfied is one of our top priorities, if you have any questions about the use of this electrical wire, please contact us, our team will provide maximum support in 24 hours.
