High-Current Battery Charging Connectors for Electric Forklifts – 50A, 120A, 175A, 350A

Heavy-Duty Forklift Battery Charging Plugs – 50A to 350A High-Amperage Connectors  Electric vehicle (EV) charging plugs

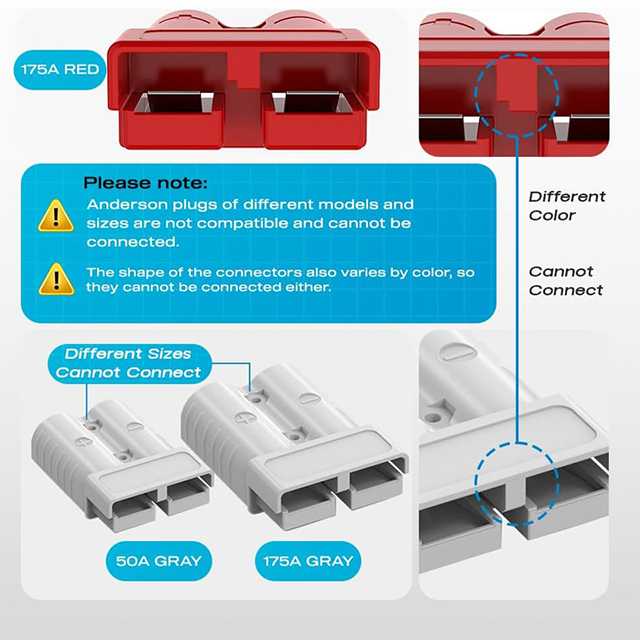

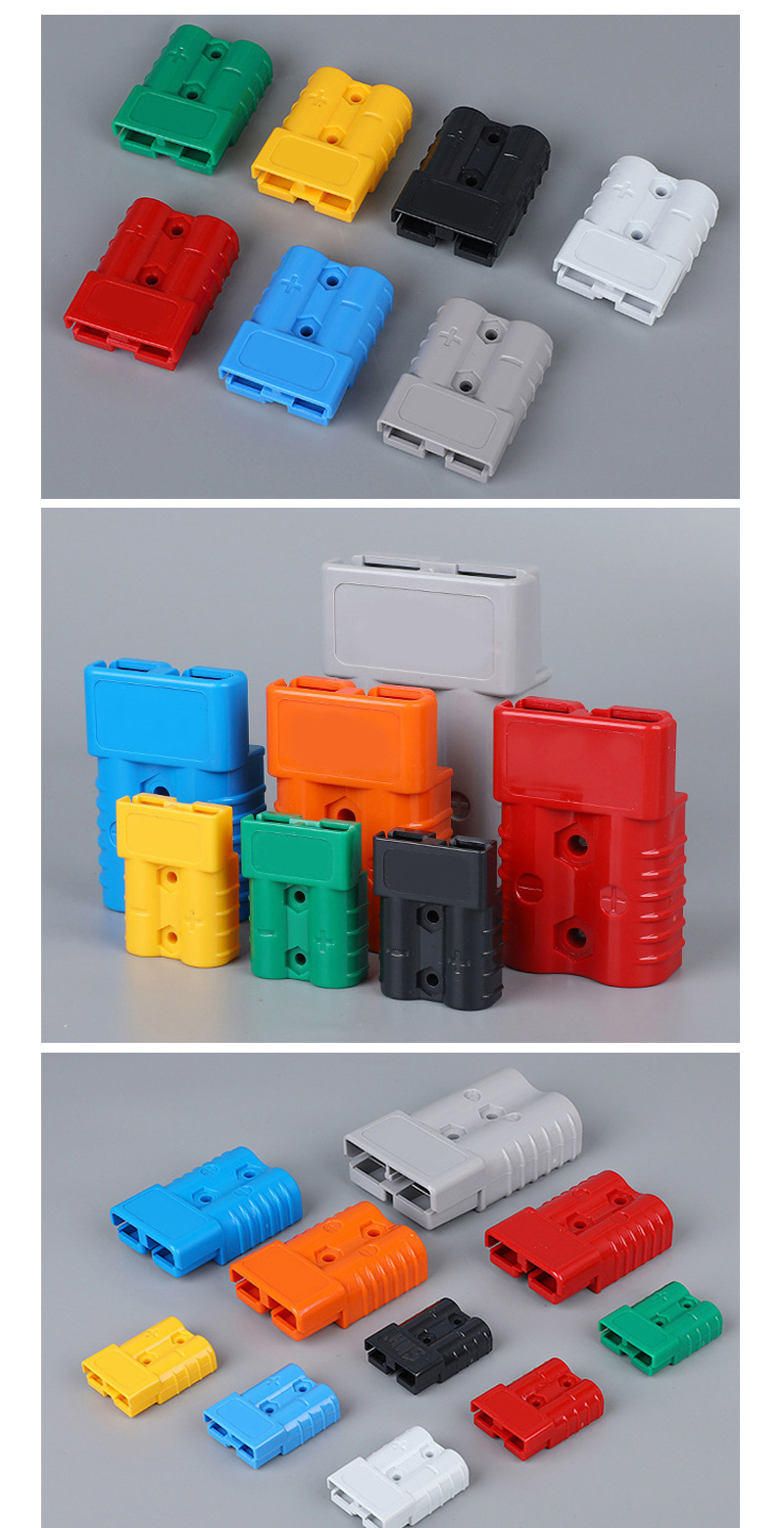

350A:
Red
Grey
Blue
yellow
175A:
Red
Grey
Blue
Yellow
120A:
Red
Grey
Blue
yellow
50A:
Red
Grey
Black
Blue
yellow
Availability:
Quantity:
Inquire Add to Basket

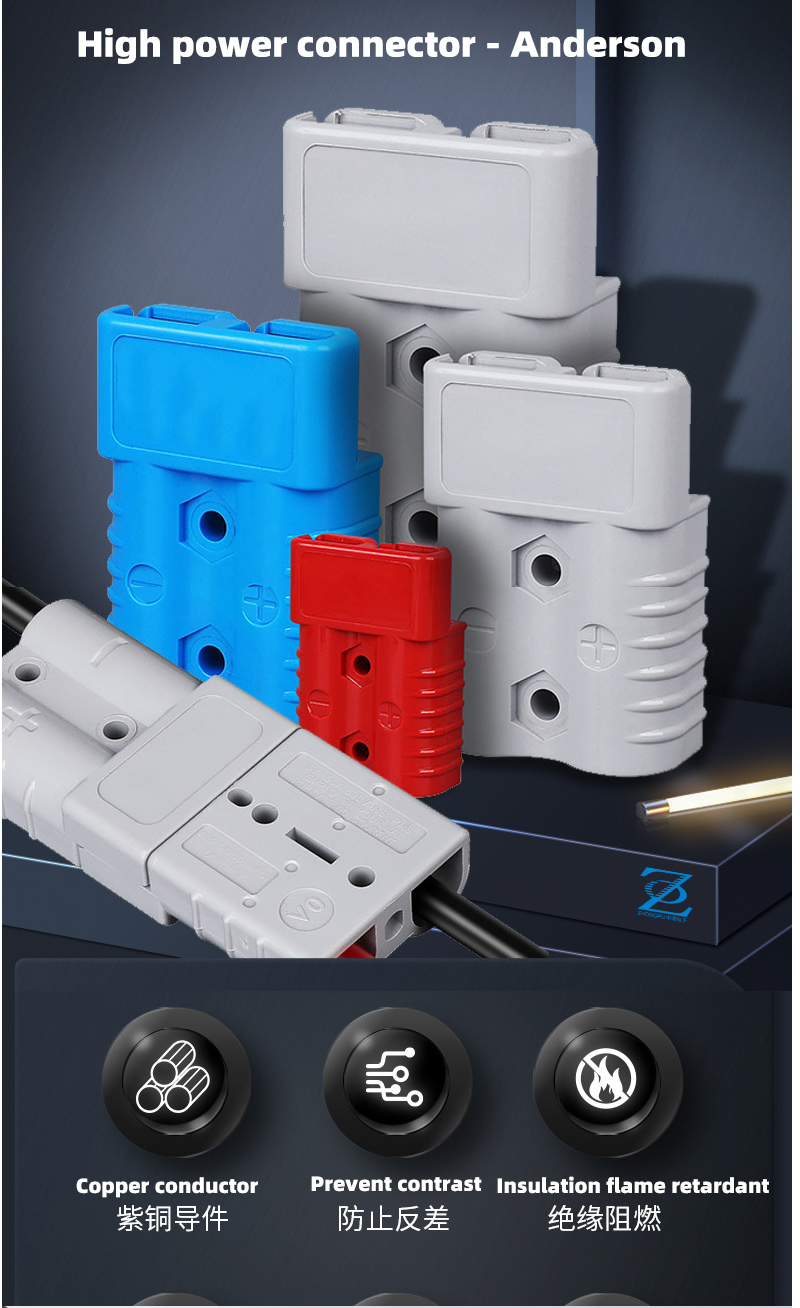

  • Anderson-style connectors

  • ZP

Heavy-Duty Forklift Battery Charging Plugs – 50A to 350A High-Amperage Connectors


material
copper
Cable entry angle
10mm

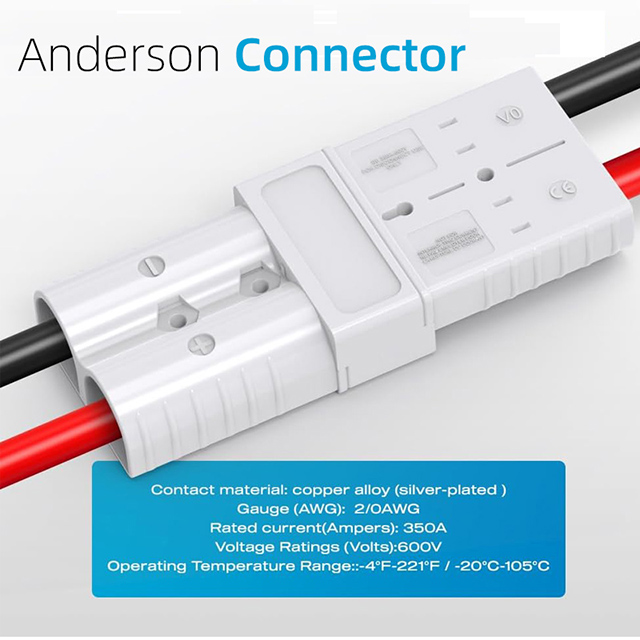

Product series Anderson
Contact type Direct insertion

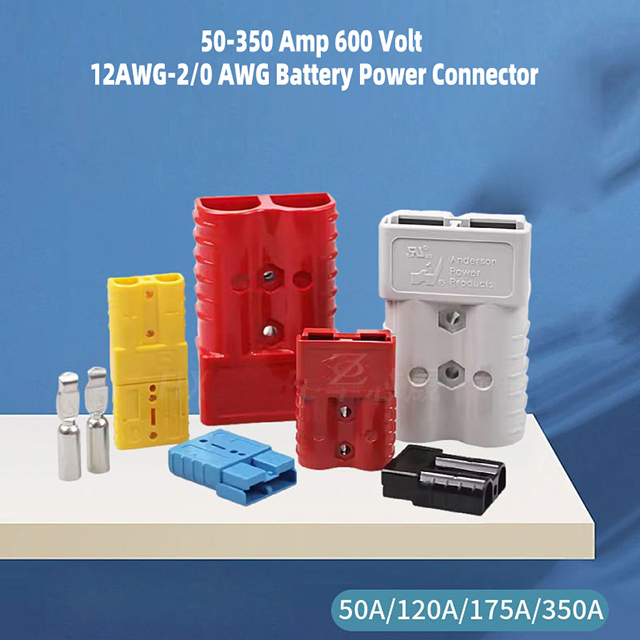

Rated current 50A 120A 175A 350A
Rated voltage 600V 600V 600V 600V
Connection wire specification mm2 4-16mm2 10-25mm2 10-50mm2 10-70mm2
Connection wire specification 12AWG/10AWG/8AWG/7AWG 6/4/2AWG 4/2/1AWG 2/0 AWG

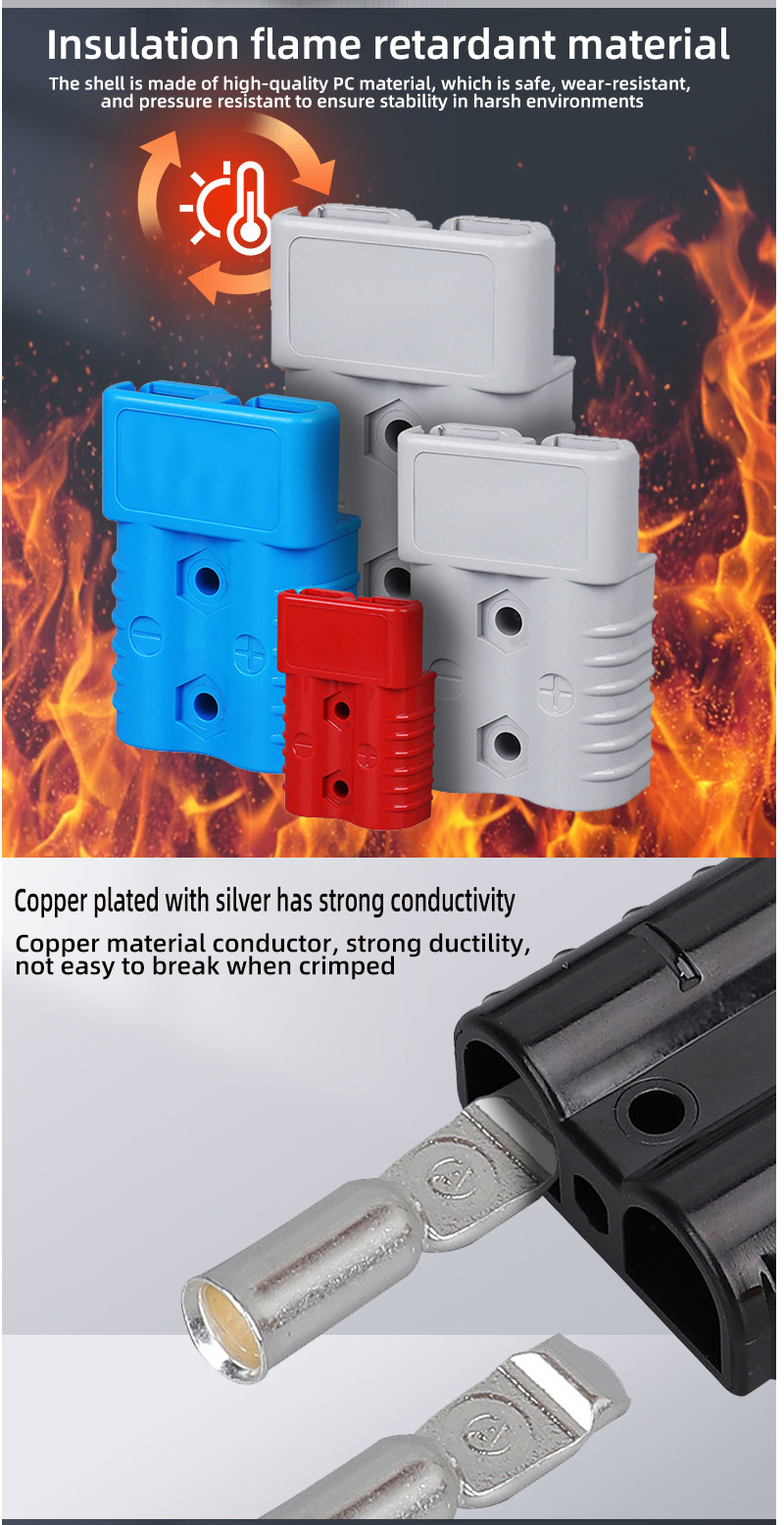

Terminal material Copper plated with silve
Terminal shell material: PVC
Fire rating UL94V-0

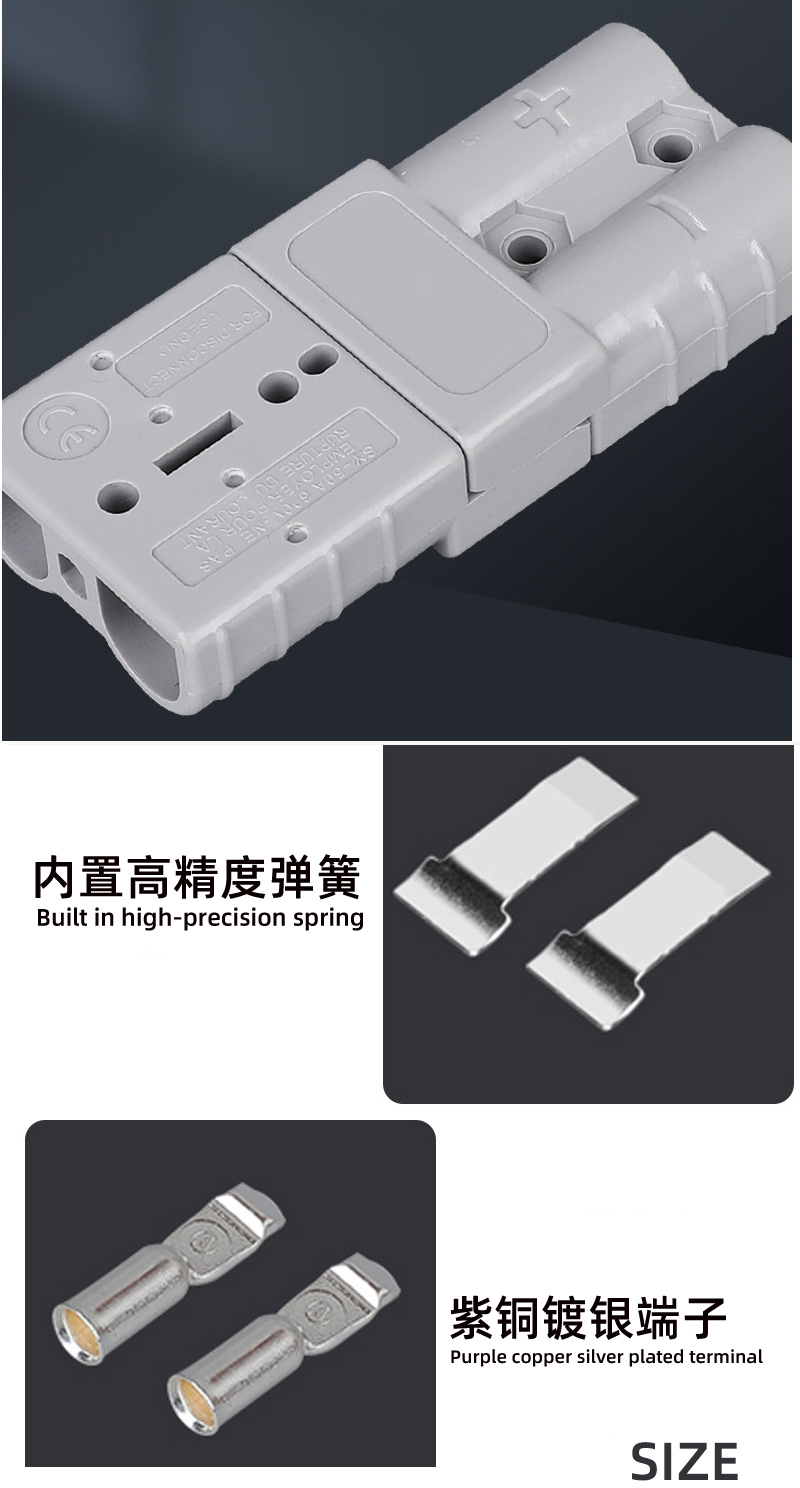

Internal shrapnel 65Mn
Temperature -20°C~105°C
A-1

A-2

A-3

A-4

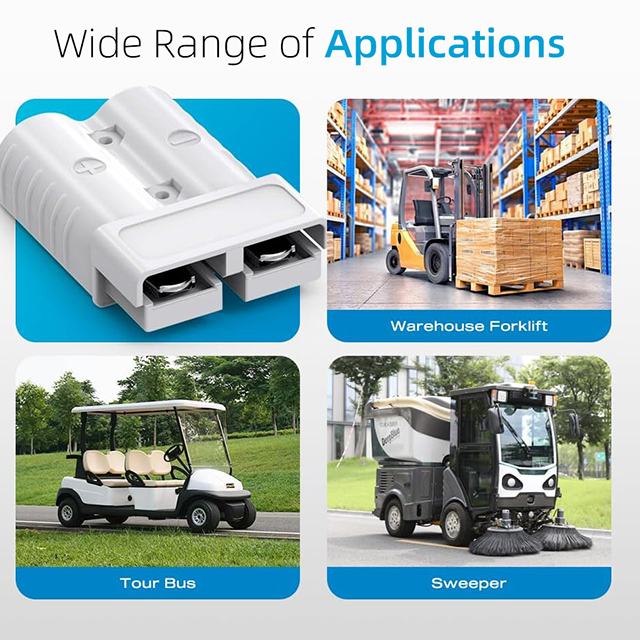

A-5

A-6
