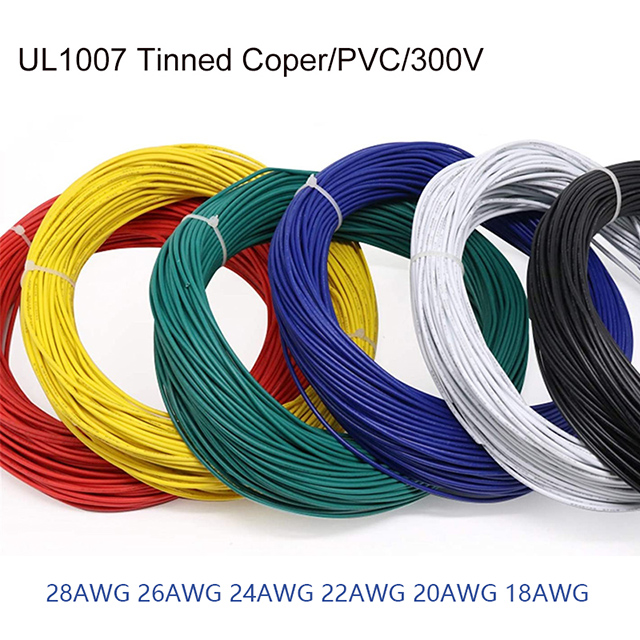

UL1007 PVC Wire 18-26AWG Tinned Copper Cable for Electronics

UL1007 PVC Single Core Wire 18AWG/20AWG/22AWG/24AWG/26AWG Tinned Copper Cable Electron Lamp Environmental Line

UL1007 PVC Hook-Up Wire (18-26AWG) | Tinned Copper, VW-1 Flame Retardant, 300V/80°C | Ideal for Electronics, LED Lighting & Appliances. RoHS Certified

Availability:

Quantity:



Inquire Add to Basket

Model:
ZP1007-30AWG-18AWG
Brand:
zhongpu

Product Description

UL1007 PVC Single Core Wire 18AWG/20AWG/22AWG/24AWG/26AWG Tinned Copper Cable Electron Lamp Environmental Line

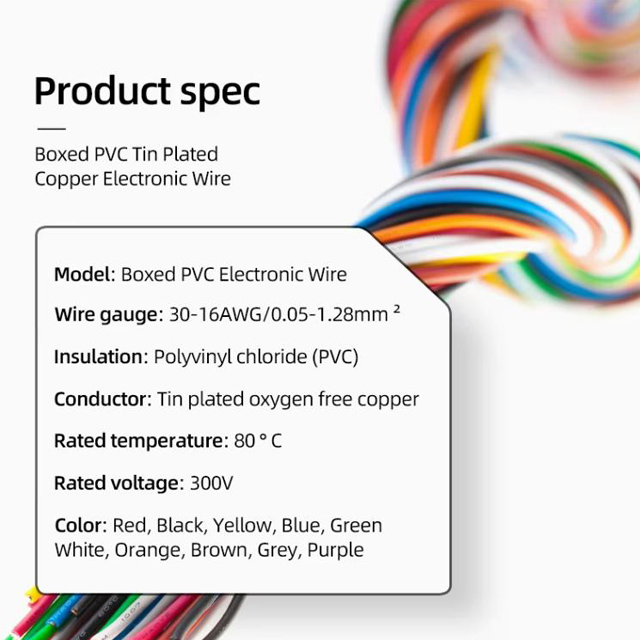

1.Rated temperature	80℃
2.Rated voltage	300V
3.Standard	UL758
4.Solid or Stranded, tinned or bare copper conductor 30AWG-16AWG
5.Insulation	PVC
6.Test	UL VW-1 &CSA FT1 Vertical flame test
7.Certificate	UL/ROHS

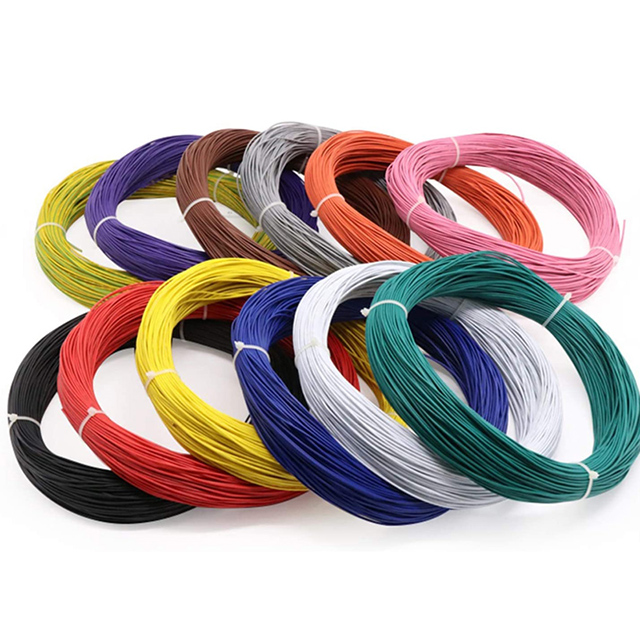

8.Color	White, blue, red, black,yellow,green, transparent,yellow-green,etc

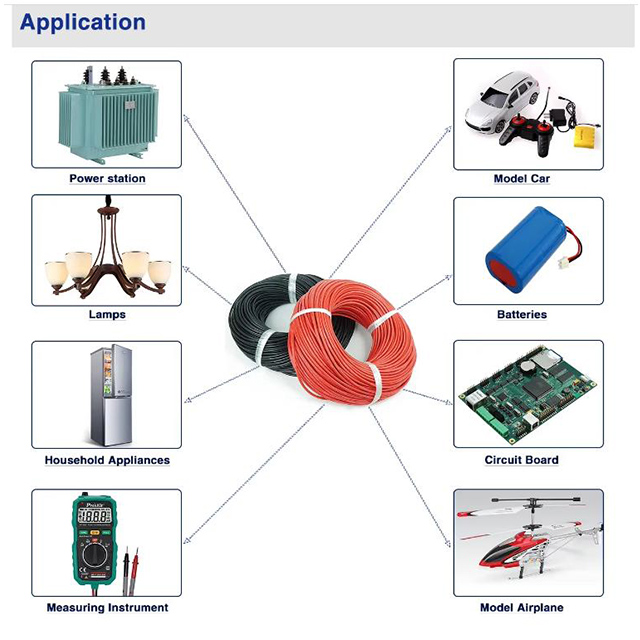

9.Application	Internal wiring of appliances or electronic equipment.

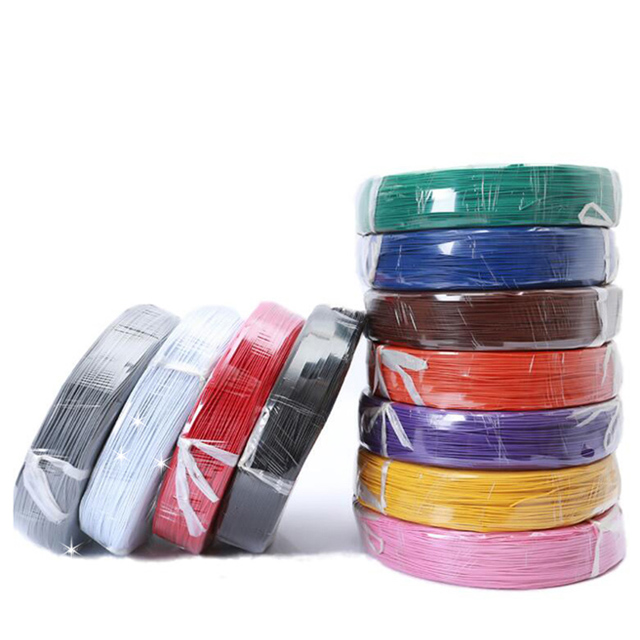

10.Packing	Rolls or as customer's requirement

Products Description

UL 1007 20AWG 26/0.16TS

UL 1007 22AWG 17/0.16TS

UL 1007 24AWG 11/0.16TS

Wire color: transparent Wire sheath

material: PVC

Product Certification Number: UL E331548

Rated temperature 80
Rated voltage300V
Reference standardUL758,UL1581,CSA C22.2No.210.2
Solid or stranded ,tinned or bare copper conductor 32~16AWG
PVC insulation , comply with ROHS environmental standard
Passes UL VW-1,CSA FT1 flame test
Uniform insulation thickness to ensure easy stripping and cutting

For general purpose internal wiring of appliance

规格表

2468-06

UL1007 Wire PVC Hook-Up Wire 20AWG / 22AWG / 24AWG / 26AWG Wire Tinned Copper Wire UL Certified Wire UL1007 300V 80°C PVC Wire UL1007 VW-1 Flame-Retardant Wire UL1007 Wire for LED Lighting UL1007 Wire Bulk Supplier UL1007 18-26AWG Tinned Copper Wire – VW-1 Flame Retardan

Related Products

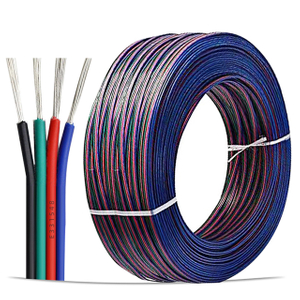

00m 4-Pin RGB Extension Wire for COB LED Strips | 22 Gauge
