Shenzhen Zhongpu Electronic Co., Ltd
 |
| Quantity: | |
|---|---|
H05RR-F

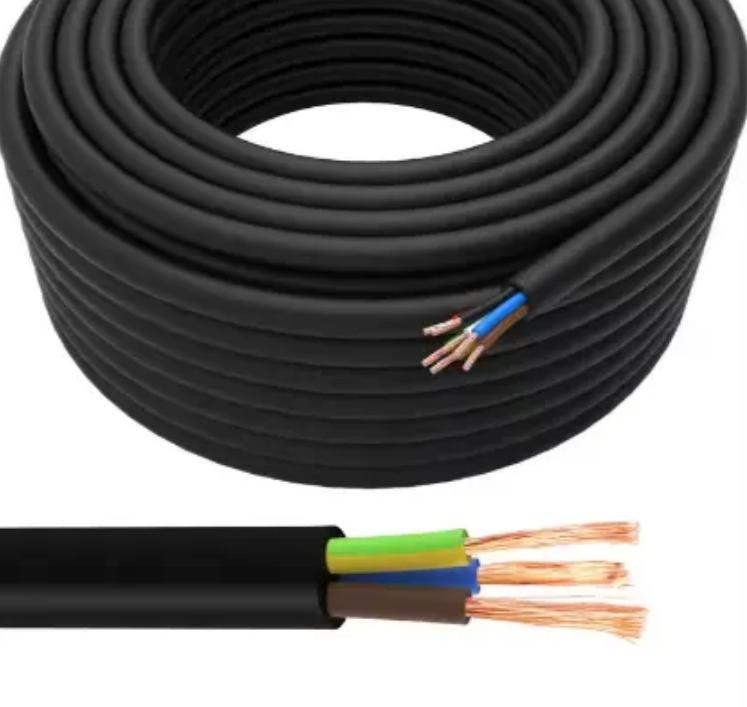

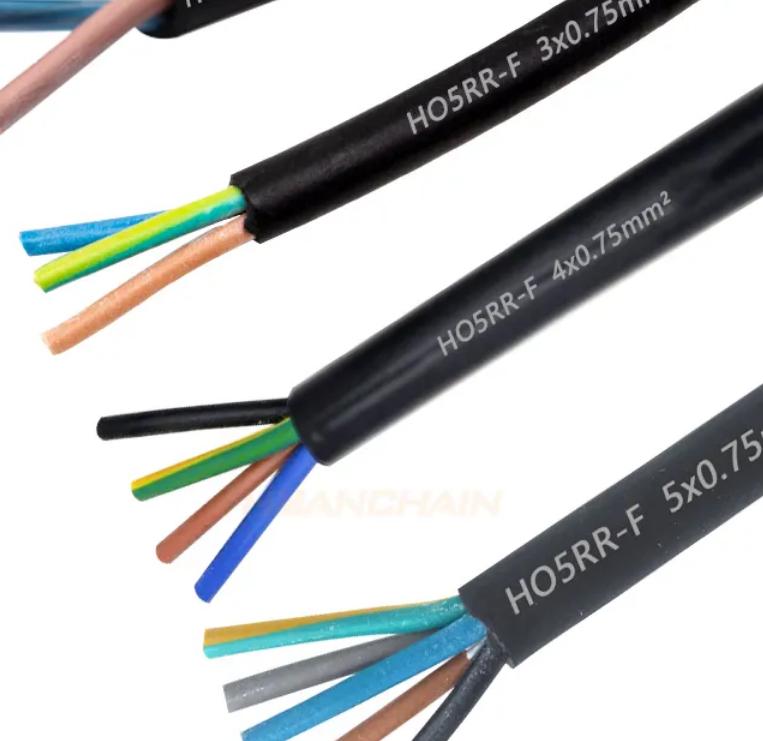

European Rubber Cable H05RR-F: Oil-Resistant, Flame Retardant (IEC 60332-1) for Industrial and Household Appliances
| Certification | SAA, VDE, or KC602451IEC |
| Operating temperature | -35℃+60℃ |
| Rated voltage | 300V/500V |
| Conductor | Bare or tinned stranded copper conductor |
| Insulation material | EPR |
| Sheath material | CPE |
| Model | Specifications | Conductor structure | Insulation thickness | 绝缘线径 | sheath thickness | 完成外径 | 20℃导体电阻 | ||
| The average | The minimum value | The average | The minimum value | ||||||
| H05RR-F | 2 X 0.75mm² | 24X0.20mm | 0.6 | 0.44 | 2.4±0.05 | 0.8 | 0.58 | 6.4±0.20 | 26 |
| 2 X 1.0mm² | 32X0.20mm | 0.6 | 0.44 | 2.6±0.05 | 0.9 | 0.67 | 7.0±0.20 | 19.5 | |
| 3G 0.75mm² | 24X0.20mm | 0.6 | 0.44 | 2.4±0.05 | 0.9 | 0.67 | 7.0±0.20 | 26 | |
| 3G 1.0mm² | 32X0.20mm | 0.6 | 0.44 | 2.6±0.05 | 0.9 | 0.67 | 7.0±0.20 | 19.5 | |
vailable Opposite End Connectors and Related Products
Power Cord Plugs Manufacturer, Sets us apart
We Can Confirm Various Requirements For Power Cord, Plug, Rated Voltage, Rated Current, Length Of Power Cord, Cables Specifications, End Terminals, Wires Color, Packaging, Shipment, And Pricing Of Power Cord Plugs For You At Any Time.
We are qualified supplier for you.
* Samples: Free.
* Wire Core: Oxygen free pure copper.
* Outer Jacket Material: PVC, Rubber, Halogen-Free, Textile braid.
* Packing: Standard Export Carton.
* Shipment: LCL, Container, Sea and Air Transport.
Power Cord Plugs Are Widely Used
IPowerCable also specializes in customizing OEM power cords, plugs, connectors, wire harness, S/R, sockets, and other special request for customers. We can developing open any new mold tooling according the samples and based drawings. It can effectively avoid the uniqueness of Power Cord plugs to meet the OEM power cord plug requirements of various electronic appliances flexibly. We have the ability to apply for new safety certificates and environmental reports for new OEM products.
