ZP-H5A
ZP

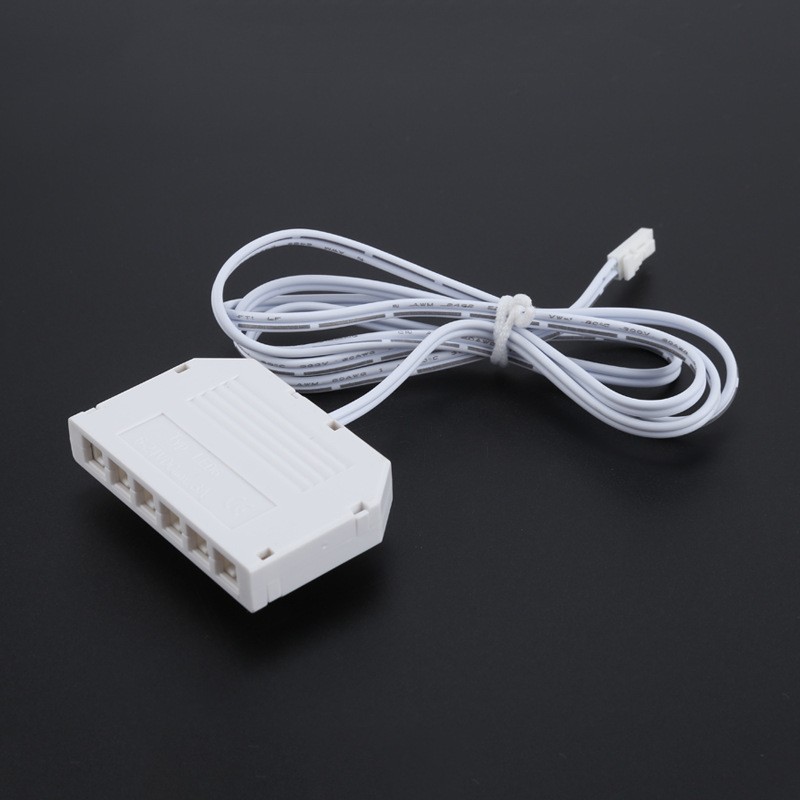

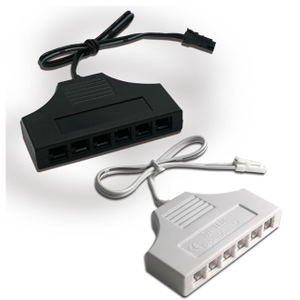

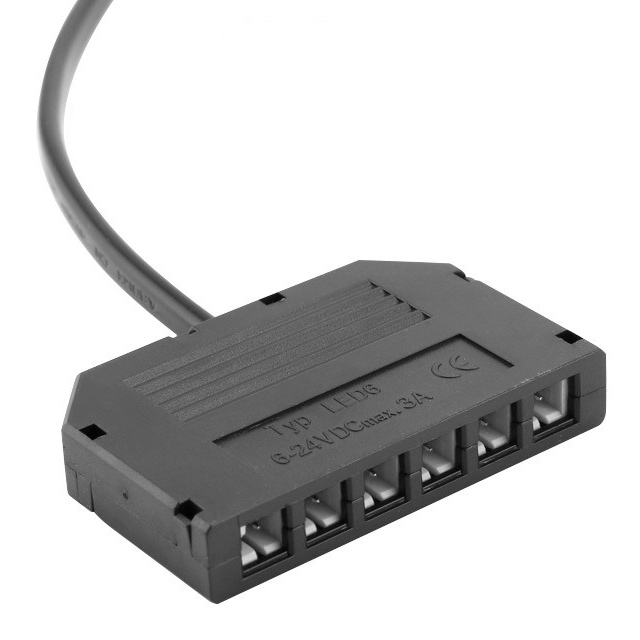

DC12V 24V Power Junction Box 6 Hole 5A Led DuPont Junction Box LED Under Cabinet Wardrobe Closet Light DuPont Connector
High-quality connectors for connecting LED lamps in the energy-saving era, one-to-one led six-way DuPont junction box cabinet lighting, using ABS high-quality shell,
strong heat resistance, applicable temperature range: -20℃~+50℃. Using DuPont 2.54 interface six-position junction box, single-hole output current can reach 3A.
The tail wiring can be customized according to customer requirements (line length, wire gauge, etc.).
Product name LED six-hole junction box
Product brand Zhongpu
Product model L8606
Material ABSPA765
Interface type DuPont 2.54
Insulation voltage 300V
Appearance size 58.5*38*10mm
Electrical conductivity 1.673×10-6Q·cm
Wire diameter (outer diameter) 1.5~2.0mm
Wire diameter (inner diameter) 0.5~1.0mm
Upper interface size 2.54 Lower interface size 2.54
Access certification CE/RoHS
6 way led junction box for under cabinet lighting
Rated values ：Max.5A 12V/24V DC
Materials ：ABS
Approvalse ：CE,RoHS,Reach
Cable ：VDE H03VVH2-F 2*0.75mm²
UL2468 AWG18awg
Color ：white/black
-------------------------------------------------------------------------------------------------------
DC12V 24V Power Junction Box 6 Hole 5A Led DuPont Junction Box LED Under Cabinet Wardrobe Closet Light DuPont Connector
High-quality connectors for connecting LED lamps in the energy-saving era, one-to-one led six-way DuPont junction box cabinet lighting, using ABS high-quality shell,
strong heat resistance, applicable temperature range: -20℃~+50℃. Using DuPont 2.54 interface six-position junction box, single-hole output current can reach 3A.
The tail wiring can be customized according to customer requirements (line length, wire gauge, etc.).
Product name LED six-hole junction box
Product brand Zhongpu
Product model L8606
Material ABSPA765
Interface type DuPont 2.54
Insulation voltage 300V
Appearance size 58.5*38*10mm
Electrical conductivity 1.673×10-6Q·cm
Wire diameter (outer diameter) 1.5~2.0mm
Wire diameter (inner diameter) 0.5~1.0mm
Upper interface size 2.54 Lower interface size 2.54
Access certification CE/RoHS
6 way led junction box for under cabinet lighting
Rated values ：Max.5A 12V/24V DC
Materials ：ABS
Approvalse ：CE,RoHS,Reach
Cable ：VDE H03VVH2-F 2*0.75mm²
UL2468 AWG18awg
Color ：white/black
-------------------------------------------------------------------------------------------------------
