High Voltage 20kV Silicone Wire 18AWG UL3239 for Industrial Applications

Industrial Grade Ultra-Flexible High Voltage Cable: 20kV, 18AWG, Silicone Rubber (UL3239)  305M/Roll
18AWG 20KV:
Availability:
Quantity:
  • 3239 18awg 20KV

  • zhongpu

1750578883

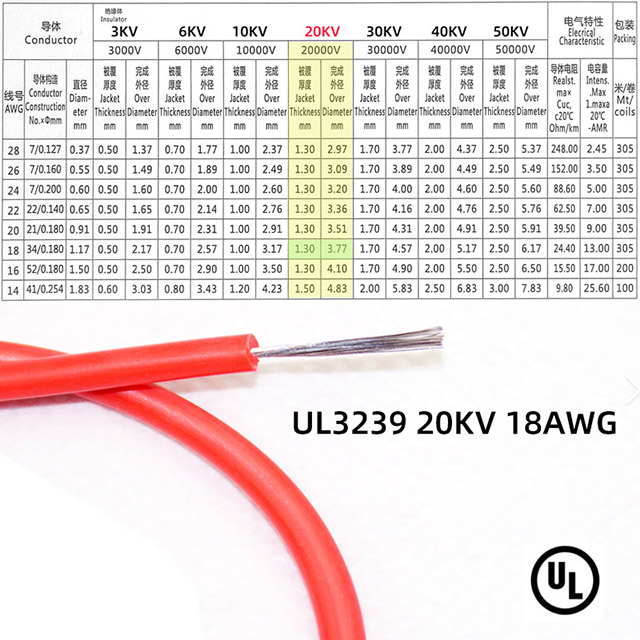

DC  High Voltage Silicone Wire UL3239 18awg 20kV Silicone Rubber Insulated Tin-Coated Copper


★Rated temperature:150/200ºC
★Rated voltage:10,20,30,40 & 50 KV
★According to:UL Subject758,UL1581
★Tinned stranded copper conductor
★Crosslinked PE insulation
★Passes UL VW-1 FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For internal wiring of appliance such as CRT (Cathode Ray Tube) type copy machine, scanner and laptop
★ Colurs: White-Blue-Red-Black-Brown-Yellow-Pink
★ Insulator: Silicone

ZP-3239-18AWG -01ZP-3239-18AWG -07
