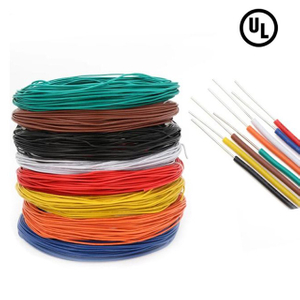

UL3239 15-40KV Silicone High Voltage Wire 150°C

UL Approval UL3239 Silicone Insulated High Temperature High Voltage Electrical Cable Wire
★Rated temperature:150/200ºC
★Rated voltage:10,20,30,40 & 50 KV
★According to:UL Subject758,UL1581
★Tinned stranded copper conductor
★Crosslinked PE insulation
★Passes UL VW-1 FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For internal wiring of appliance such as CRT (Cathode Ray Tube) type copy machine, scanner and laptop★ Colurs:
White-Blue-Red-Black-Brown-Yellow-Pink
★ Insulator: Silicone
Wire Gauge: 30/ 28/ 26/ 24/ 22/ 20/ 18/ 16/ 14AWG (Optional)
Usage: Suitable for a variety of home appliances, LED lighting, electronic equipment, lithium batteries, airplane models, robots,
model toys and other lead-out cables.
Availability:
Quantity:
Inquire Add to Basket

  • 3239

  • zhongpu

1750578883

HI VOLT 3239 150

3239 HIGH-VOLTAGE LEAD WIRE

RATINGS/APPROVALS:

  • 150°C – 15 KVDC – UL Style 3239

  • 150°C – 20 KVDC – UL Style 3239 / CSA TV-20

  • 150°C – 25 KVDC – UL Style 3239

  • 150°C – 30 KVDC – UL Style 3239

  • 150°C – 40 KVDC – UL Style 3239

  • UL VW-1 Flame Rated

  • RoHS compliant

CONSTRUCTION:

  • Conductors

    • 18 AWG – 10 AWG (All voltages) -UL 3239

    • Stranded tinned copper
      (Consult factory for alternative conductor and stranding options.)

  • Insulating System

    • Extruded silicone rubber

  • Standard Color Coding

    • Available in Colors

CHARACTERISTICS:

  • Radiation, ozone, and moisture resistant

  • Easy to strip

  • High flexibility

  • LSZH: Low Smoke, Zero Halogen

  • Suitable for applications to -60°C


UL3239-03
