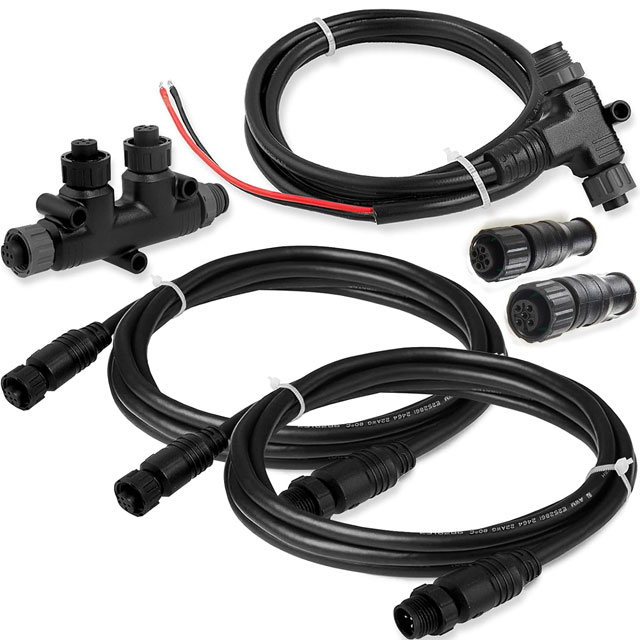

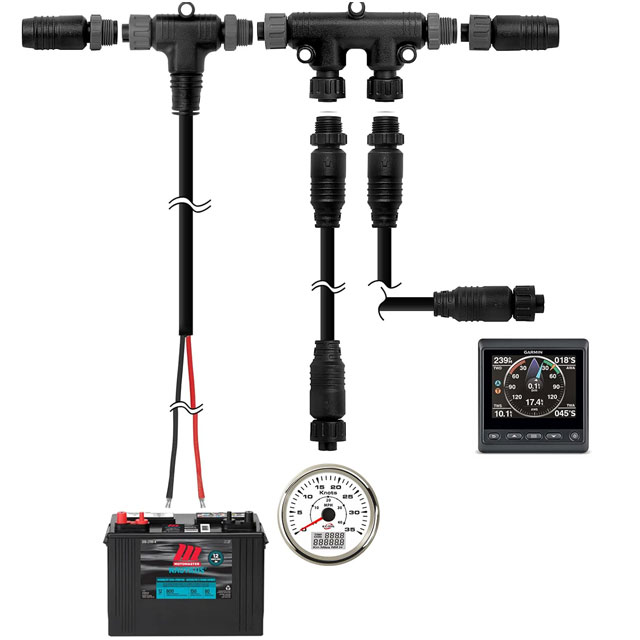

Complete NMEA 2000 network kit from ZHONGPU: backbone power cable, drop cables, T-connectors and terminators. Marine-grade, plug-and-play solution compatible with Lowrance, Garmin, Simrad, B&G, Navico, Yamaha and Honda engines.
表格
| 参数 | 规格 |
| Cable Type | NMEA 2000 (N2K) M12 5PIN |
| Connector | NMEA 2000 M12 5PIN male/female |
| Total Length | 10 ft (3 m) backbone + drop configuration |
| Power Cable | 1 m (3.3 ft) with inline T-connector |
| Drop Cables | 2 × 2 m (6.5 ft) |
| Termination | 1 pair male/female terminators |
| Operating Temp | -20 °C ~ +80 °C |
| Rating | IP67 (mated), UV-resistant, tinned copper |
| Color Coding | Red = power, Blue = backbone |
Shenzhen Zhongpu Electronic Co., Ltd. 3rd Floor, Building C, Zone A, Jiuji Industrial City, Shajing Subdistrict, Bao’an District, Shenzhen.
We produce UL-certified electronic wires, and customize AC/DC power cords, M12 waterproof cables, NMEA 2000 marine cables and other waterproof wiring harnesses. With advanced automatic production & testing facilities and ISO9001 quality system, we support custom products for special applications and deliver reliable cable solutions to worldwide clients.

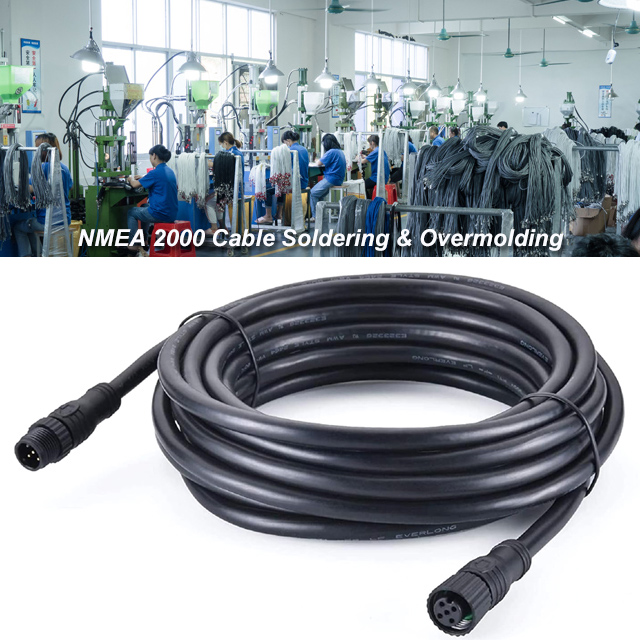

NMEA 2000 Cable Soldering & Overmolding
NMEA 2000 (N2K) cable is marine CAN bus cable, adopting M12 5-pin Micro-C threaded waterproof connector, IP67 rated. We provide full service including wire soldering, TPU overmolding and testing for marine networking applications.

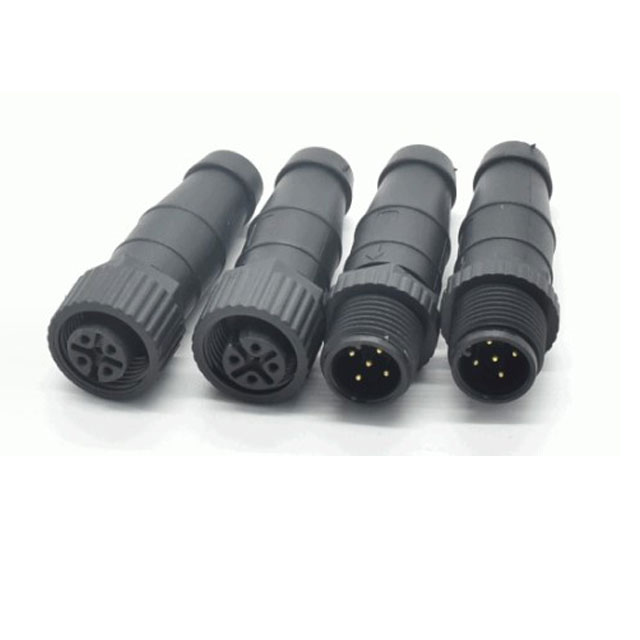

Pin Assignment (M12 5Pin)
1: Shield (Drain Wire) 2: +12V DC (Red) 3: GND (Black) 4: CAN‑H (White) 5: CAN‑L (Blue)
Cable structure: 2 power wires + twisted CAN differential pair, with aluminum foil & braided shield. Marine grade, UV and salt spray resistant. Overmold material: TPU (hydrolysis-resistant for marine environment).

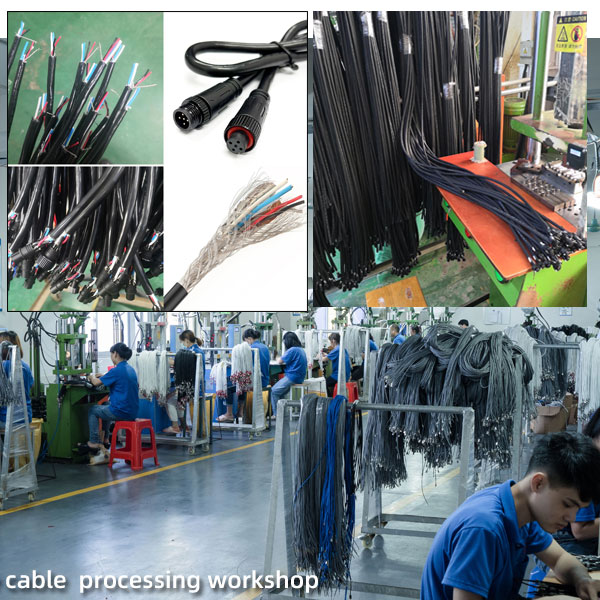

Production Process
Cable cutting, outer jacket stripping and core wire pre-tinning
Soldering wires to M12 connector pins following N2K pin definition; clean flux residues after soldering
Pre-production electrical test: continuity, insulation resistance and short-circuit check (100% test before molding, no rework after overmolding)
Fix soldered assembly in injection mold, inject TPU for integrated overmolding to form strain relief boot
Cooling, demolding and flash trimming
Final inspection: visual check, electrical test, IP67 air/water leakage test, pull force test. Optional CAN communication test and salt spray test upon request.
Key Technical Notes
Shielding design: single-point grounding to prevent ground loop interference and CAN signal dropout.
Drop cable max length ≤6m; 120Ω terminators must be fitted at both ends of NMEA 2000 backbone.
Available types: single ended, double ended, N2K T-connector harness. Custom length & laser marking supported.
Application
Marine engine monitoring, navigation, sonar, vessel sensor network and other on-board CAN bus systems.
