Shenzhen Zhongpu Electronic Co., Ltd
 |
| Quantity: | |
|---|---|

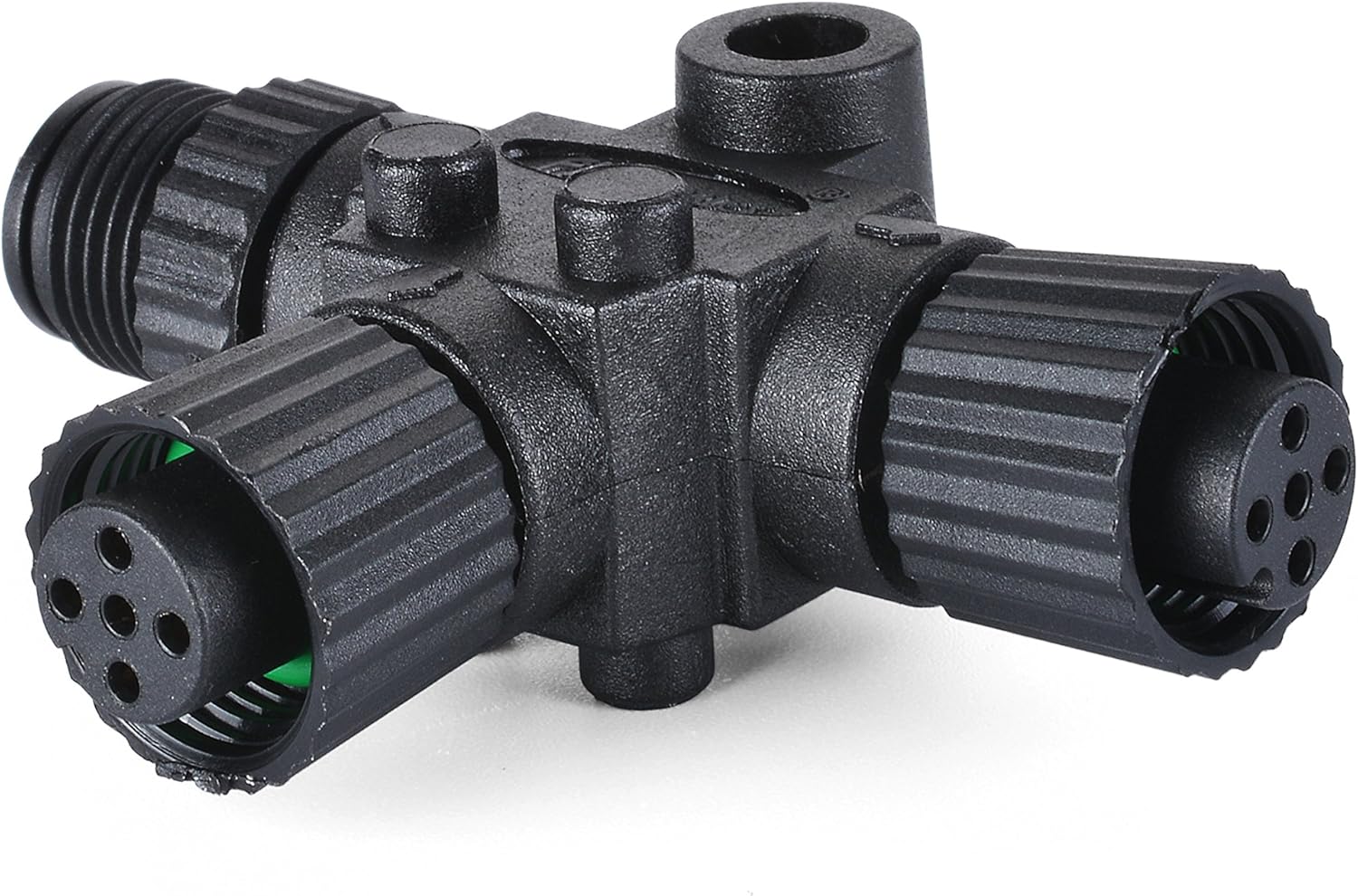

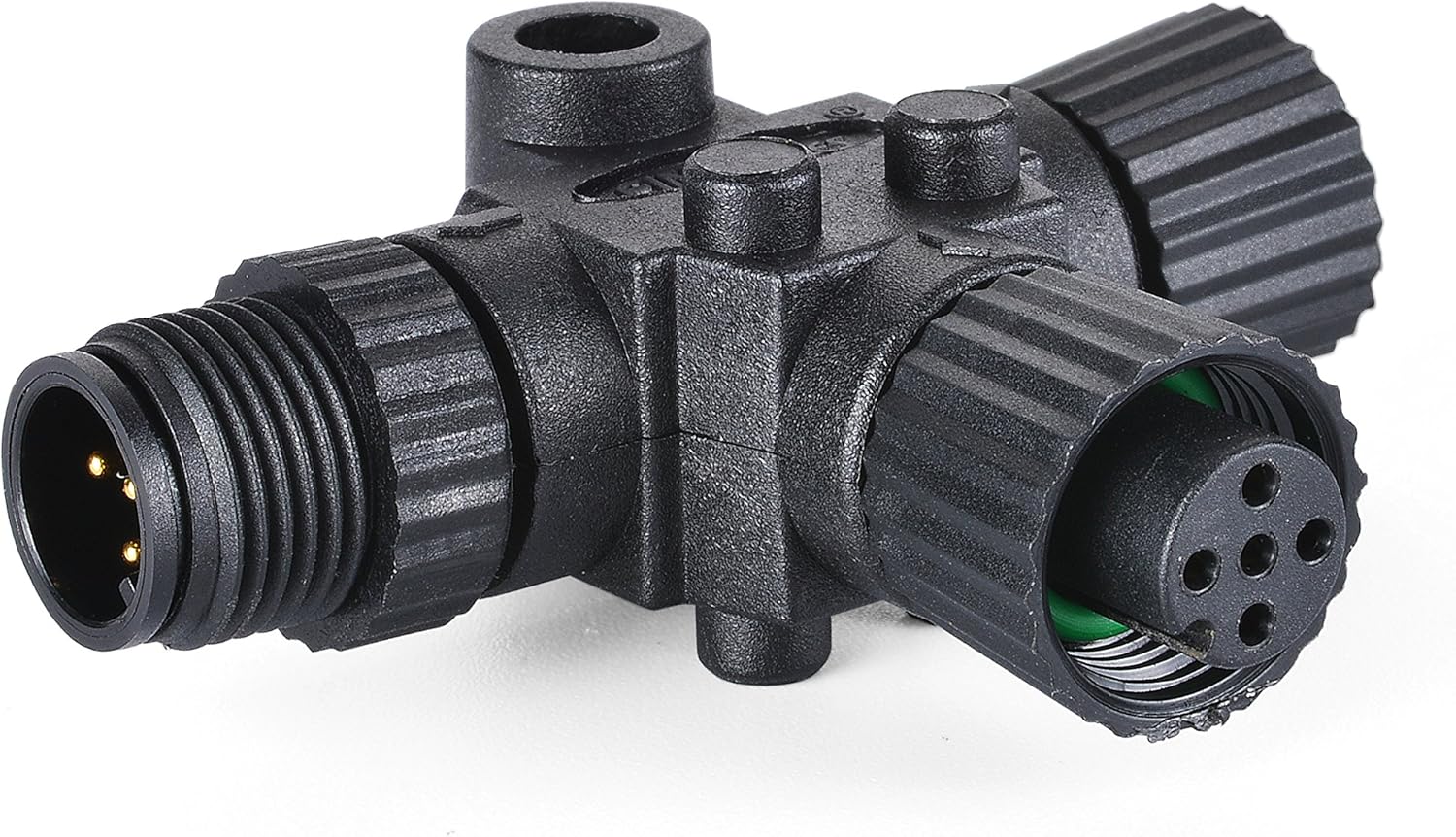

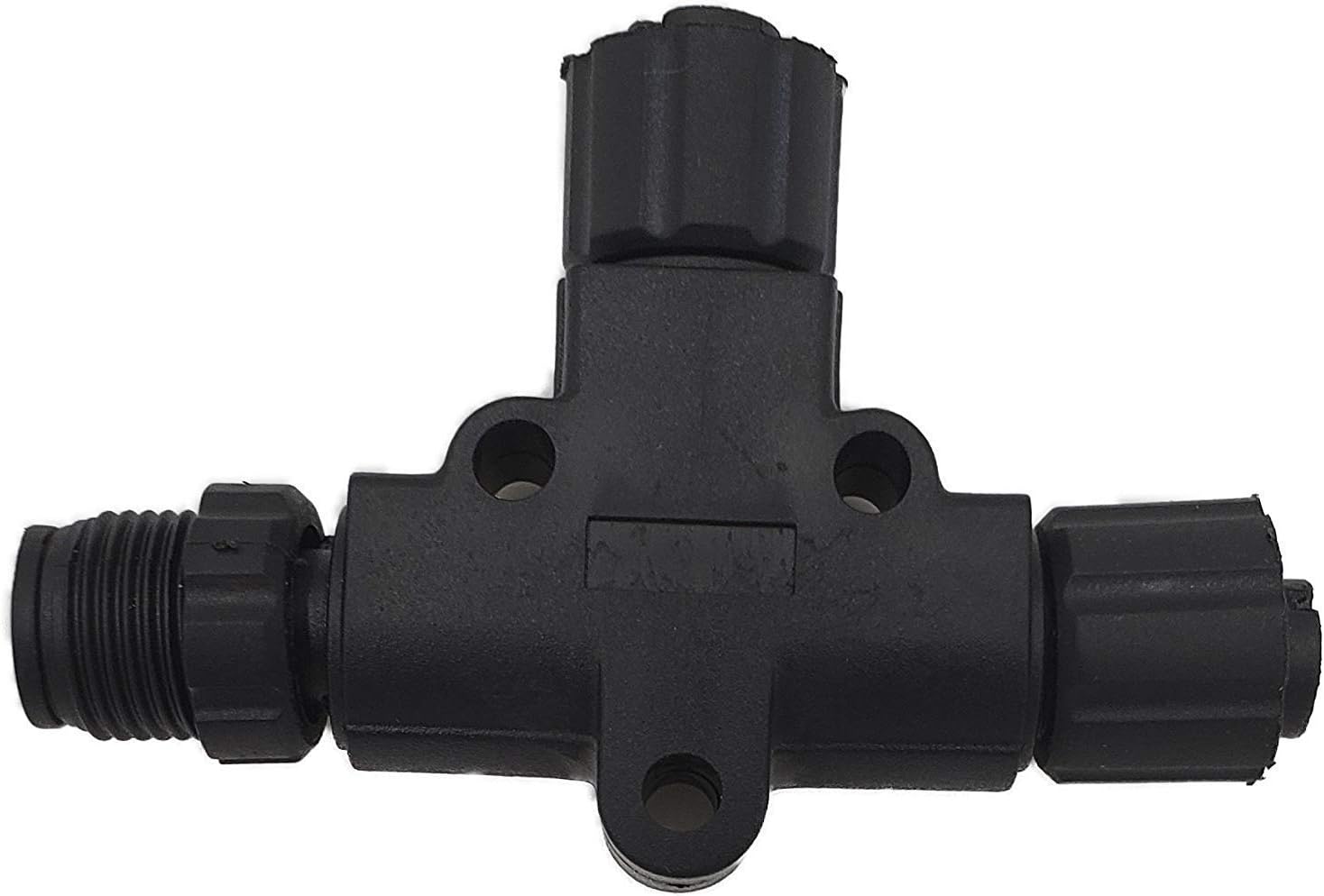

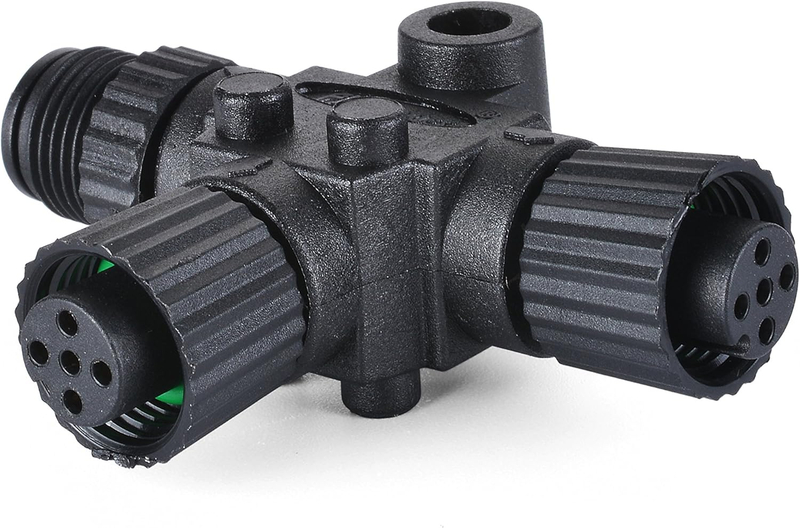

NMEA 3T
| Brand | OEM |
| Model Name | T-Connector |
| Vehicle Service Type | Boat |
| Special Feature | Waterproof |
| Connectivity Technology | NMEA 2000 |
| Map Type | Nautical |
| Mounting Type | Panel Mount |
| Product Dimensions | 2.5"L x 1.75"W x 0.5"H |
| Touch Screen Type | Capacitive |
| Display Type | touch screen |

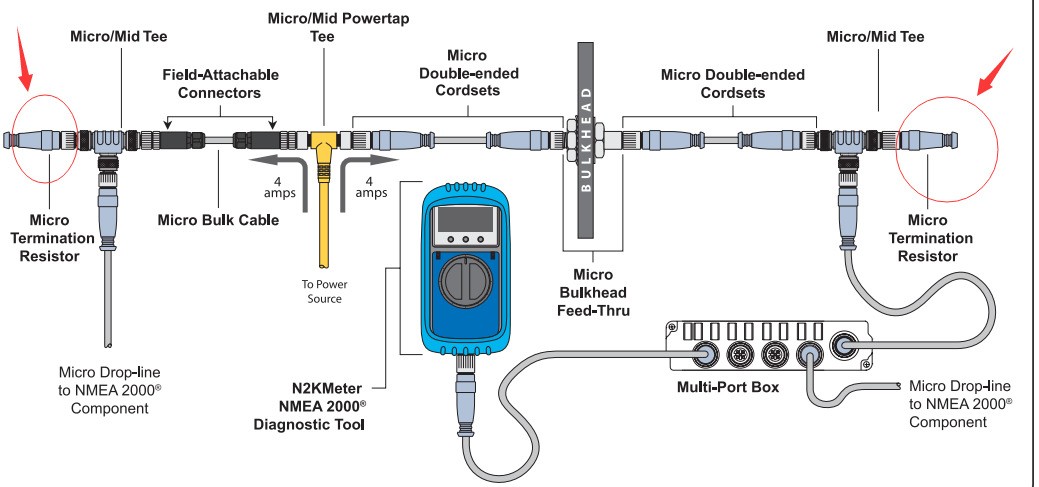

Easily connect additional displays, sensors or other devices to your NMEA 2000 (N2K) backbone cable.
NMEA 2000 Certified, 100 percent universal and compatible with other manufacturers' products.
These high quality connectors are manufactured with gold-plated contacts for corrosion resistance.

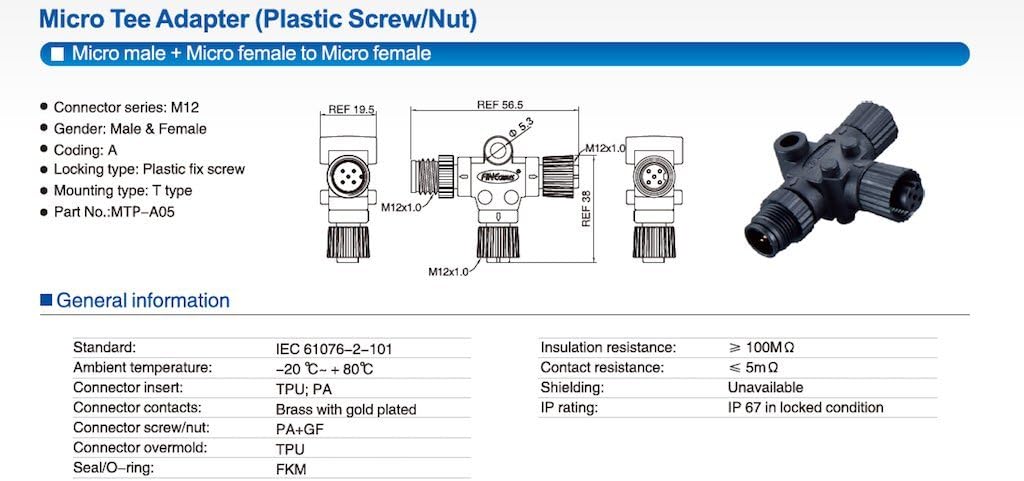

Technical Data:
Insulation Resistance; DC500V+- 10%, test for 1 minute and the insulation resistance should be more than 100 MQ
Durability; 4000 cycles insertion/extraction cycles at a maximum rate of 2000 cycles per hour.
Waterproof test (IP67) Submersion in water, 1 meter for 24 hours.
